T&H Sensor - for plate 503
Product code:
9.000.086
Sizes:
120 x 80 x h 12,5mm
Operating temperature:
from -40°C to +50°C
precision 0.01°C
precision 0.01°C
Operating humidity:
from 0% to 100% relative humidity
precision 0.01%
precision 0.01%
Voltage:
210-220V AC (requires ezon.io power supply cod 9.000.033)
€ 32.90
ezon.io T&H Sensor is a smart sensor capable of measuring the temperature and humidity levels present in an environment.
The ezon.io temperature and humidity sensor is designed to be inserted inside a normal 503 box.
Thanks to its precision, it reliably detects the temperature and relative humidity, allowing you to maintain total control over the climate of your home.
ezon.io T&H Sensor is compatible with all other devices in the Ezon.io system and, combined with the climate manager device, allows you to manage the climate automation of your home.
Installation and management of the sensor are extremely simple simple.
The detected temperature and humidity data are available in the dedicated area within the ezon.io smart home app. Simple and intuitive programming does not require the intervention of a technician.
ezon.io T&H Sensor, when combined with the Mini Hub, allows you to control the temperature and humidity levels even remotely and by voice with voice assistants such as Amazon Alexa and Google Home to customize your automation experience.
The possibility of remotely updating the control software allows ezon.io to keep your device always up to date and performing.
The device in this version is designed to be inserted inside a 503 box, for example to replace an existing chrono-thermostat. The elegant plate makes it a refined design object.
In summary, the ezon.io T&H Sensor represents a new level in home environmental monitoring. With its precision, advanced connectivity and intelligent features, it offers impeccable control and optimal comfort for your home.
T&H Sensor (for 503 plate) + Power Supply 9.000.033
Detect temperature and humidity
T&H Sensor (for 503 plate) + Climate Manager 9.000.079 + Power Supply 9.000.033
(if the two devices are positioned in two different places, a power supply is required for each device)
(if the two devices are positioned in two different places, a power supply is required for each device)
Detects temperature and humidity and allows you to manage heating/cooling
+
You can control devices remotely
You can control your devices with your voice using voice assistants such as Amazon Alexa and Google Home
HOW TO MOUNT THE T&H SENSOR MODULE FOR PLATE 503
ezon.io T&H Sensor [cod. 9.000.086] can determine the temperature and humidity level present in an environment. It is designed to be inserted inside a 503 cassette.
You can use it together with ezon.io Climate Manager to manage your heating/cooling system.
You can use it together with ezon.io Climate Manager to manage your heating/cooling system.

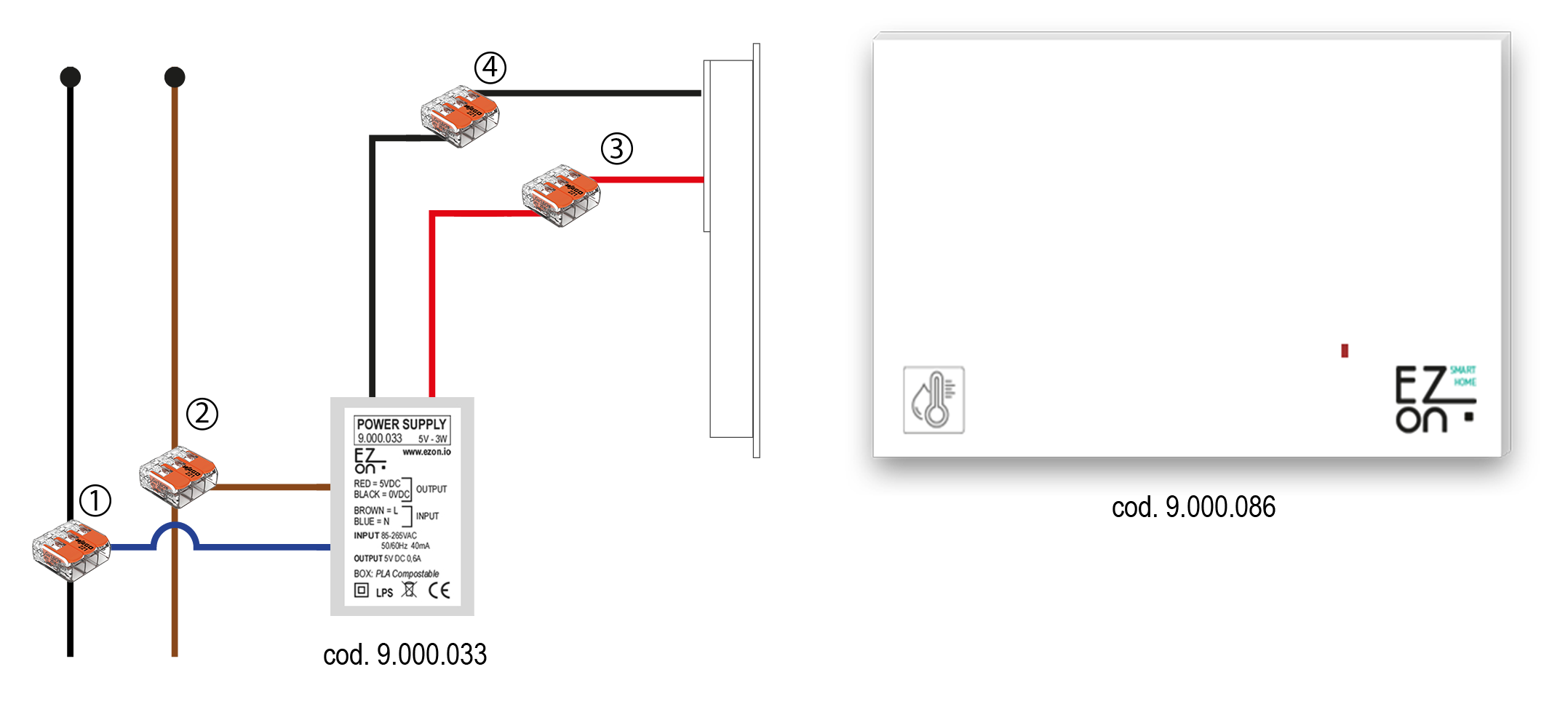

- Connect the phase and neutral of the power supply (brown and blue cables), which come out of the sensor, to the phase (black or brown) and neutral (usually blue) of your system, using the quick connectors supplied with the product. (points 1 and 2)
- Connect the positive (red cable) of the power supply to the positive of the ezon.io T&H Sensor (red cable) using the quick connector supplied with the product 9.000.033. (point 3)
- Connect the negative (black cable) of the power supply to the negative of the ezon.io T&H Sensor (black cable) using the quick connector supplied with the product 9.000.033. (point 4)
The ezon.io system can also be managed and programmed through the ezon.io APP, which can be downloaded for free from the APP Store and Google Play.
